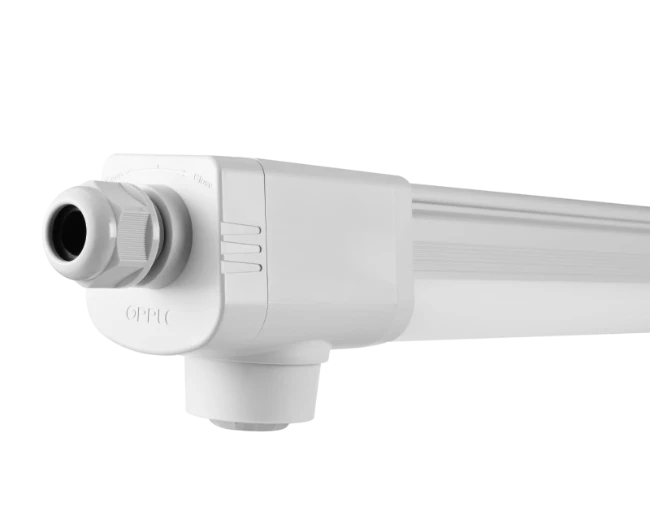

LEDWaterproof-P5-L15-62/72W-840-MD

Electrical data

Voltage type	AC/DC
Nominal voltage	220|240 V
Max. number of luminaires per miniature circuit breaker B16 (MCB)	15
Max. number of luminaires per miniature circuit breaker C16 (MCB)	34
Max. system power	72 W
Power factor	0.95
Frequency	50|60 Hz
Surge protection	2 kV
With sensor	Yes
Max. inrush current	44.4 A
Inrush time	156
Displacement factor (DF)	≥ 0.95
Max. number of luminaires per miniature circuit breaker C10 (MCB)	21
Max. number of luminaires per miniature circuit breaker C13 (MCB)	27
Including emergency lighting	No
Nominal voltage DC	180|260 V

Photometrical data

Colour temperature	4000 K
Equivalent to	TL 1/2x80W
Colour consistency (SDCM)	4
Colour rendering index (CRI)	> 80

Light technical data

Beam angle	110° x 135°

Lifespan

Lifetime (L70)	100000 h
Lifetime (L80)	100000 h
On-/Off-cycles	100000
Lifetime (L90)	50000 h

Capabilities

Sensor technology	Passive Infrared (PIR)
Sensor type	Motion + Daylight detection (MD)
Dimmability	Sensor controlled (MD)
With sensor	Yes

Certificates and standards

Protection class according to IEC 61140	II
Impact strength	IK08
Glow wire test	650°C
Risk group (EN 62471)	RG0

With control gear	Yes
Type of control gear	LED operating device current-controlled
Driver failure rate (at 5,000 hrs)	1%
Input current	0.344 A
Max. input cable diameter	7|15.5 mm
Wirethrough	No
Internal wiring (mm2)	3x2.5

Housing colour	Grey
Finishing	Grey RAL 7035
Cover material	Polycarbonate
Pressure valve	No
Coastal proof	No

Length	1655 mm
Width	71 mm
Height/depth	103 mm

Application temperature	25°C
